Energy-saving through optimal combination of freezing & cooling
Storage room: compiled entirely to your wishes
Smeva's storage rooms are of first class quality and developed for intensive daily use. In addition, the rooms are affordable, can be implemented in any desired configuration and can be delivered quickly from our own factory.
BENEFITS:
Affordable for implementation in any desired configuration
Fast delivery time: fully produced in our own factory
Suitable for both negative and positive temperatures
Also available with fire retardant panels wich comply with the highest fire resistance (B-s2, d0)
Extensive range of cold and freezer room doors and door accessories
Doors are fitted with a door lab as standard; an additional pressure equalizer is unnecessary
Supplied fully assembled ex works: room complex can be installed quickly without sawing waste on site
Impact-resistant outer corners made from one piece

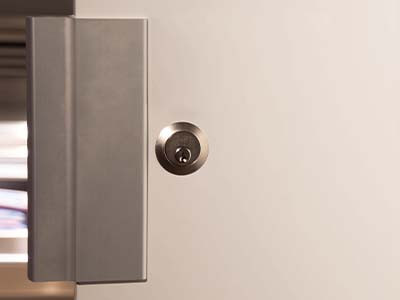

Solid and robust hinges and locks
Extensive options and accessories
Energy-efficient
Available in various materials and any desired RAL color
Standard with self-closing door
Room complex doors are fitted with a door closer, type Dictator
Door is cushioned and closes quickly and securely
Developed for intensive daily use

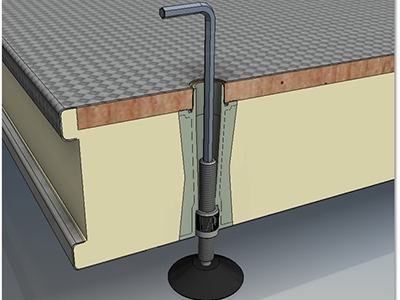

Levelling foot construction
The architectural subfloor does not have to be levelled
Room complex is quickly level; save time and money during installation
Easy to adjust
Also ensures good ventilation and venting

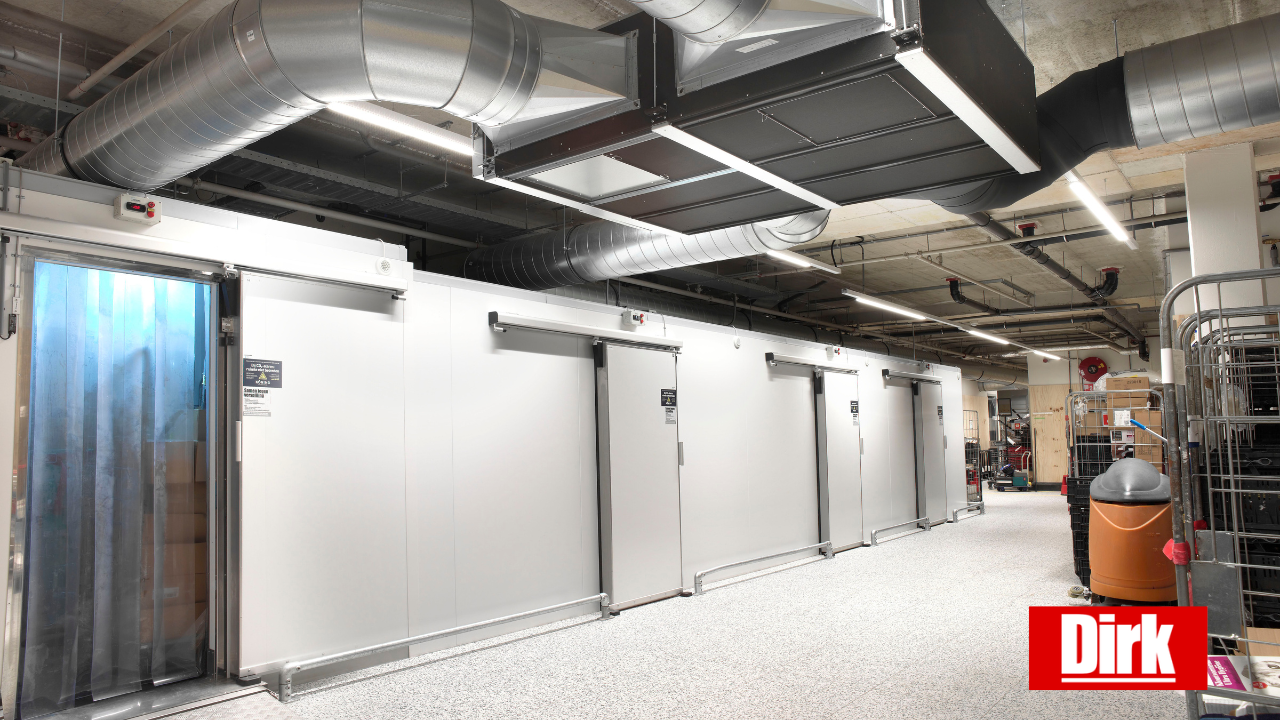

Combi rooms for catering, supermarkets or medical applications
Smeva not only produces modular cold and freezer rooms for the food industry. Thanks to the HACCP certification, our storage rooms are also extremely suitable for the pharmaceutical industry.

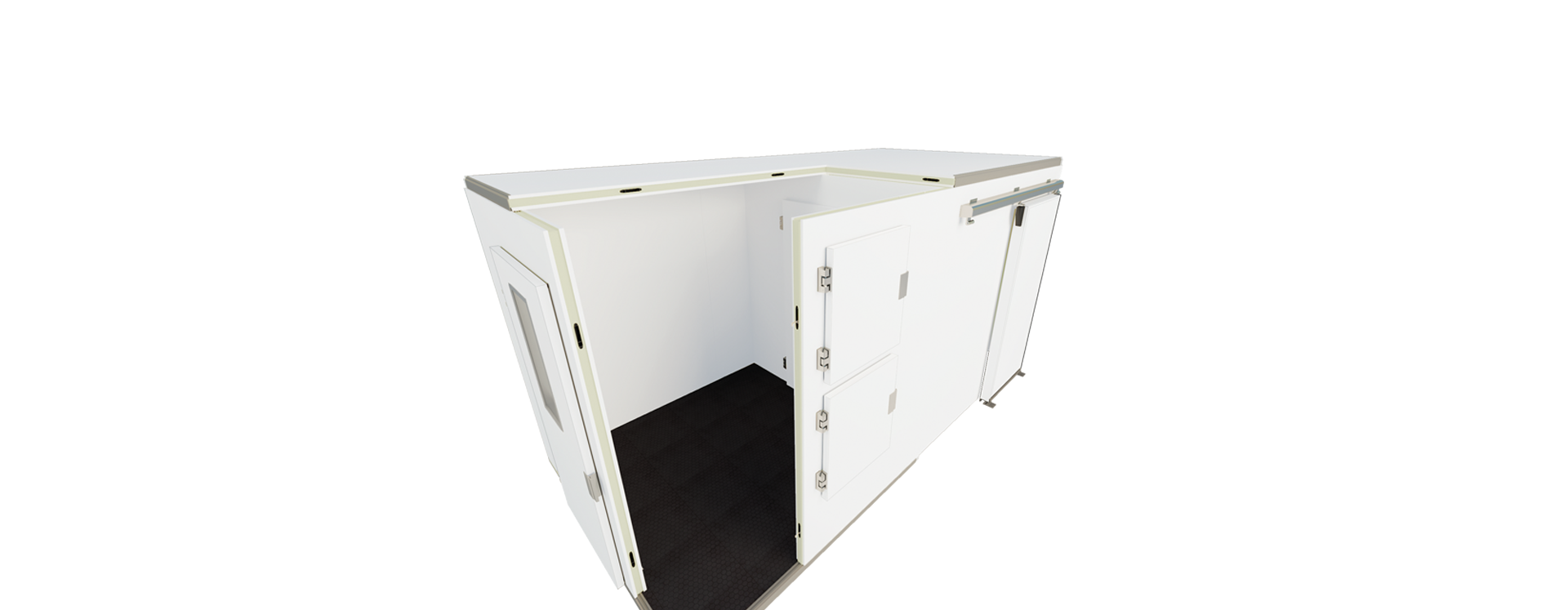

Modular assembled storage room
Smeva has been manufacturing and developing custom cold and freezer rooms for 100 years. From small rooms and combi rooms to large spaces for storage, processing and packaging. The starting point is a standard storage room, made up of standard panels. We build your solution based on that solid base, with all the required options and specifications. An oblique room, a combi room or a storage room, they can all be built modularly. Customisation is therefore possible across the entire line.
Install combi room quick and easy
All parts of your Smeva cold and freezer room are supplied plug-and-play. This makes installation easy. Thanks to the quick-closing system, the pre-assembled door front, the adjustable foot construction, and the supplied assembly plan, the storage room can be quickly assembled on site.
Combi room can be compiled entirely to your wishes
We can make the standard cold room with a wide variety of doors and windows in any desired place. In addition, we offer countless features that are typical Smeva, such as a folding and adjustable ramp, an automatic door closer, or a heated scrub pit that prevents waste water freezing. All our cold and freeser rooms are prepared to be combined with interior construction, such as tailoring tailor-made solutions, recesses and other design options.
Type of storage room: | Panel thickness(es): |
Storage space for freshly prepared foods | 78 mm, 98 mm, 138 mm |
Cold room for food processing | 78 mm, 98 mm, 138 mm |
Storage space for medicines and laboratory facilities | 78 mm, 98 mm, 138 mm |
Product cooler for pre-packaged food, dairy, soft drinks in supermarkets, catering, gas stations, etc. | 78 mm, 98 mm, 138 mm |
Panel thickness: | R-value: | U-value: | Temperature range: |
78 mm | 3,608 m² K/W | 0,243 W/m²K | +2 tot +60 ̊C |
98 mm | 4,477 m² K/W | 0,201 W/m²K | -20 tot +60 ̊C |
138 mm | 6,217 m² K/W | 0,143 W/m²K | -35 tot +60 ̊C |
Product | Smeva room complex |
Composition: | Outer plate, galvanised steel with polyester coating. Insulation core made of polyurethane foam. Inner plate, galvanised steel with polyester coating. Modular construction. |
Steel plate: | Sendzimir galvanised steel sheet of 0.5 or 0.63 mm, SG 8000 kg/m³. Quality sheet steel S250 GD Z100, pursuant to EN 10147/EN 10143-93. Visible side (A-side) with 25 µm Pladur@ 2-layer polyester coating in colour RAL 9010 pure white (20 µm polyester lacquer and 5 µm polyester primer) 120 µm protective film (vacuum applied, film adhesion 150-300G). Backside (B-side) with a single layer of polyester protective lacquer, suitable for PU foaming, thickness 7 µm, in colour RAL 9002 grey white. |
Module size: | 299 mm |
Insulation thicknesses: | 78 mm, 98 mm and 138 mm |
Panel width: | 1,196 mm |
Panel height: | From 1,794 mm tot 3,289 mm |
Locking system: | Foamed panel couplings with a self-centring tightening mechanism. |
Floor panels: | Multiplex (12 mm), class 3 pursuant to EN 314-1 and 314-2, with a HEXA top layer (Taber value > 550) of anti-slip stainless steel. |
Floor construction: | On plastic beams (20 x 57 mm) every 500 mm. Alternatively the patented adjustable foot construction (adjustable range of 45 mm, with a 450-kg load capacity per adjustable foot). |
Corner profiles: | One-piece foam, aluminium finishing profile on the outside. |
Global Warming Potential: | GWP < 0.1 |
Lambda value: | 0.023 W/mK, pursuant to EN 12667 |
Density: | 41 kg/m3 ±3 kg/m3 |
Fire properties: | B-s2, d0 for fire retardant panel, pursuant to NEN-EN 13501-1. |
Compressive strength: | > 200 Kpa pursuant to EN 826 |
Water absorption: | < 2 Vol % pursuant to EN 12087 |
Closed room content: | > 90% pursuant to ISO 459 |
Composition: | Outer plate, galvanised steel with polyester coating. Insulation core made of polyurethane foam. Inner plate, galvanised steel with polyester coating. Modular construction. |
The floor panels consist of a birch plywood floor plate with a HEXA top layer that has a pressed-in anti-slip window profile in olive brown. The phenol coating offers resistance to extreme weather conditions, micro-organisms, cold and hot water, steam and hot and cold temperatures. It also has a high wear resistance (Taber value > 550).
Floor load 78 / 98 / 138 mm | Waterproof plywood, top layer HEXA | Anti-slip stainless steel, top layer CARRÉ |
Max permissible load for distributed weight | 2000 kg | 2500 kg |
Max permissible load per wheel | 50 kg | 65 kg |
Max permissible load per wheel (rubber wheel > 4 cm²) | 200 kg | 250 kg |
Max permissible point load (10 cm²) | 250 kg | 315 kg |
Max permissible pallet truck load (10 cm²) | 500 kg | 625 kg |
Antislip value | R11 | R12 |
Smeva room complexes are supplied with solid doors that close perfectly and therefore have high insulation value. Doors are flat with no protruding parts such as a door opener or hinges.The sheet material of the pre-assembled door/front combination is made from the same material as the panel walls. And all doors are standard equipped with a magnetic door seal and dictator that automatically closes the door. Smeva has an extensive range of door accessories, ask our sales department about these.
Our product range includes:
Hinged doors
Double revolving doors
Hatches
Sliding doors (optionally electrically operated)
Swing doors
Delivered as standard in RAL 9010, but various types of material and RAL colours are also possible for the doors.
